| Technical Data Sheet (TDS) |
|
| Date: 2025/04/03 |

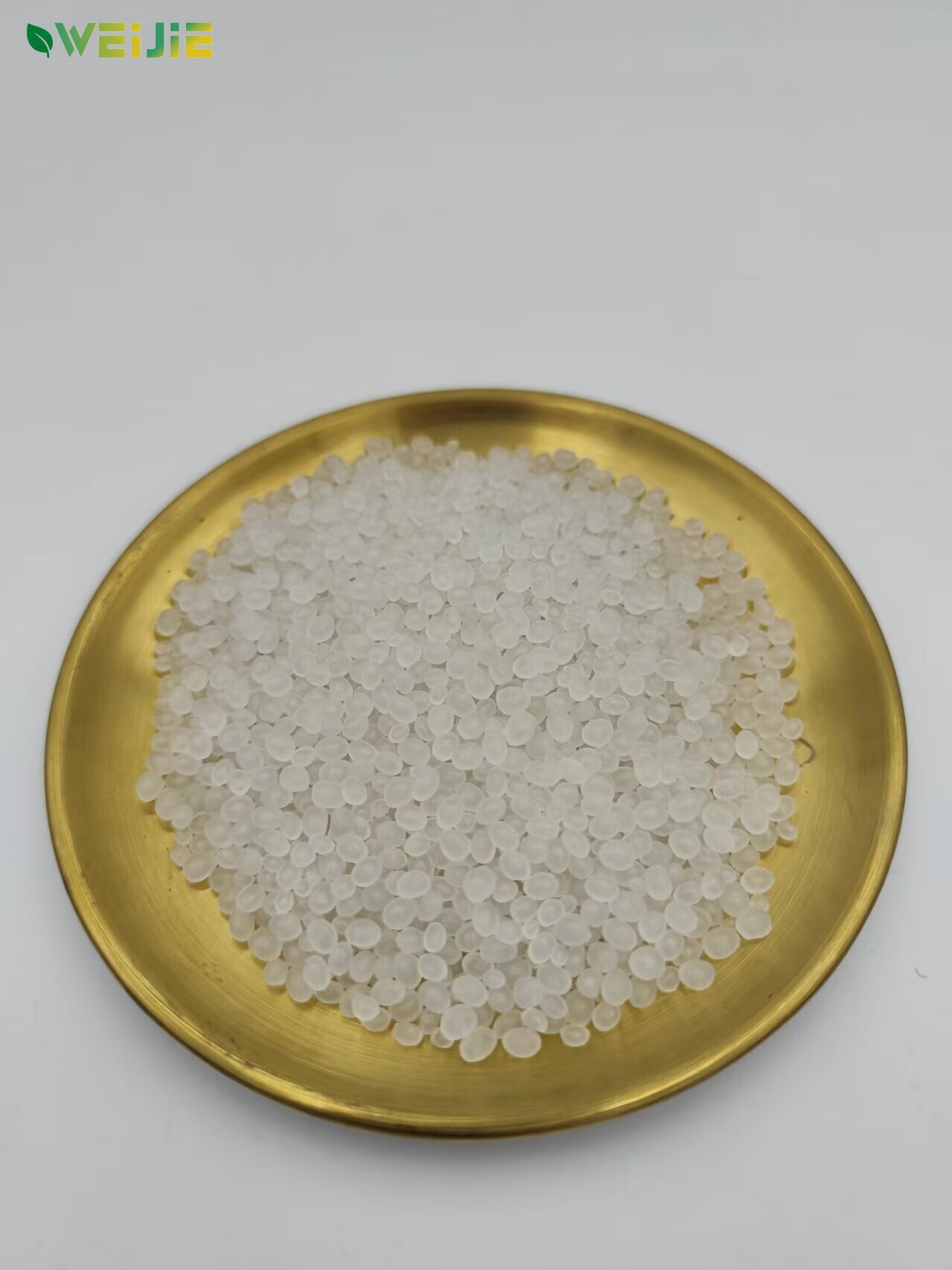

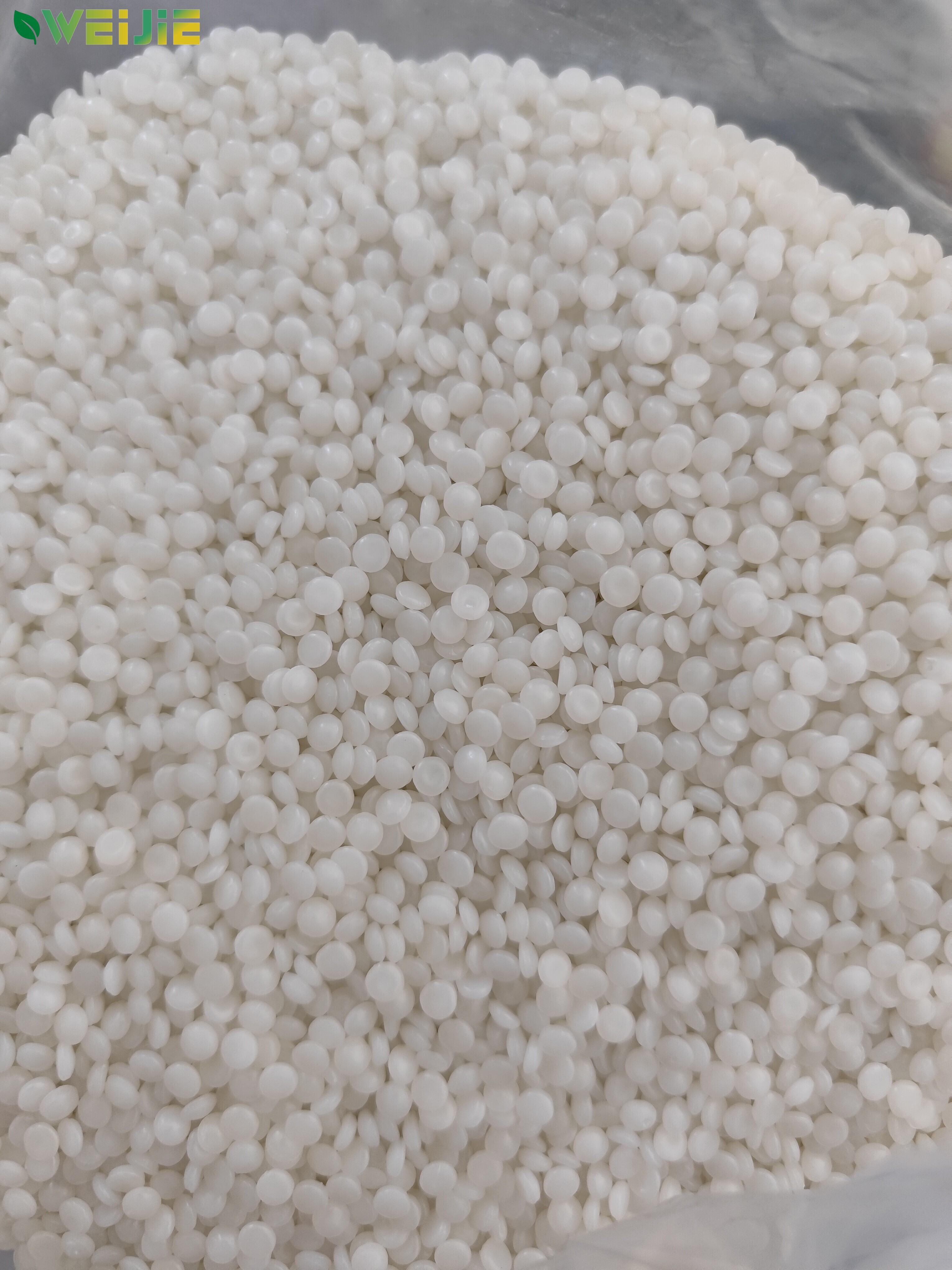

Product : 100% PCR HDPE ，natural color Grade : CEV701
Certification : GRS,FDA NOL |
| Applications : Extrusion blow molding, bottles, films. |
| Test Item | Unit | Value Range | Standard | Remark |
| Density | g/cm3 | 0.94 – 0.96 | ISO 1183- 1 | 23 °C |
| Melt Flow Rate | g/10min | 0.25-0.50 | ISO 1133- 1 | 190 °C / 2.16 kg |
| Flexural Strength | MPa | ≥15 | ISO 178 | 23 °C, 4.0 mm, 2.0 mm/ min |
| Flexural Modulus | MPa | ≥500 | ISO 178 | 23 °C, 4.0 mm, 2.0 mm/ min |
Notched Izod Impact
Strength | KJ/m2 | ≥20 | ISO 180 | 23 °C, 8 mm x 4 mm |
| Tensile Strength | MPa | ≥20 | ISO 527-2 | 23 °C, 50 mm/min |
| Elongation at Break | % | ≥50 | ISO 527-2 | 23 °C, 50 mm/min |
| Color | L Value | / | ≥65 | Internal |
|
| b Value | / | 8±2 |
| Black Dots | <0.2mm | Grain | ≤300 | Internal | 150g particle |
| 0.2–0.4mm | Grain | ≤100 |
| >0.4mm | Grain | 0 |
| PP Content | % | ≤2 | Internal |
|
| Odor | Grade | ≤2 | Internal |
|
| ESCR(F50) | h | ≥200 | ASTM D1693 |
|
| Ash Content | % | ≤1 | ASTM D2584 | 600 °C, to constant weight |
| Filter | Mesh | ≥150 |
|
|
| Typical Processing information： |
1.Different batch numbers of materials cannot be mixed.
2. Pellets typically do not need to be dried before use. |
3.For blow molding, suggested processing temperatures (℃) are: rear 160- 180,center 18
0-200,front 200-220. |
4.Customers should adjust the molding parameters according to their machine, mold and
other product requirements. |
